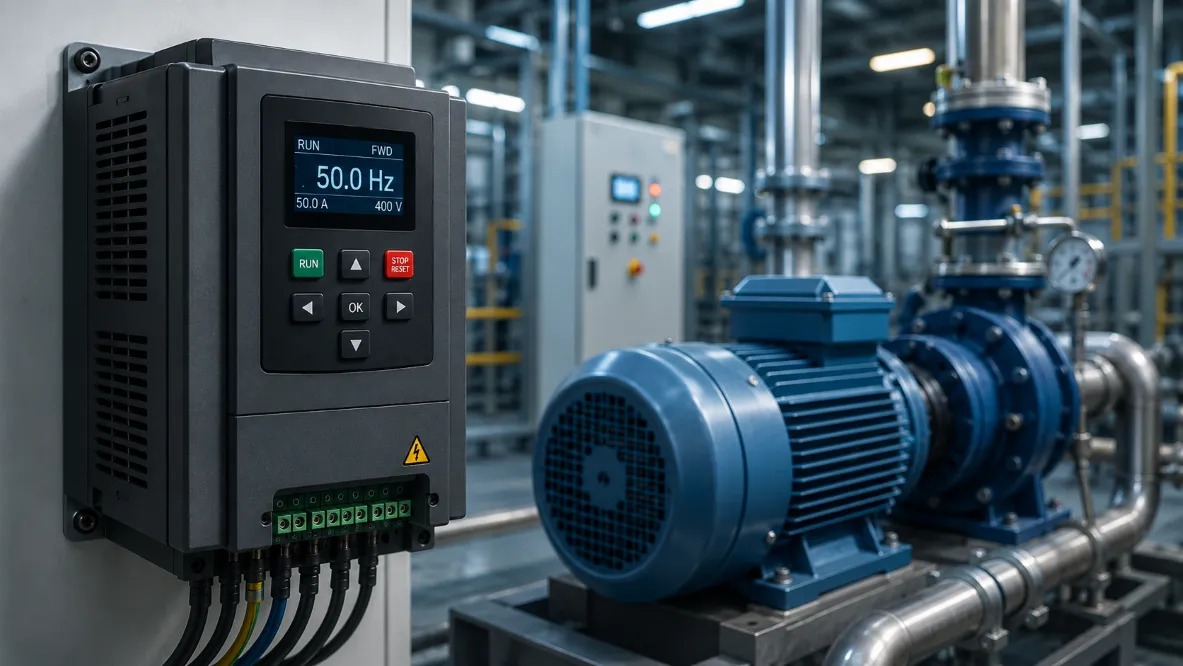

What is an Inverter (VFD)?
An inverter or Variable Frequency Drive (VFD) is an electronic power conversion device developed to control the operating speed of alternating current (AC) motors.
By electronically processing the fixed-frequency alternating current from the power grid, the VFD provides the necessary frequency and voltage values to the motor, allowing it to operate safely and efficiently at various speeds.
In this way, the motor consumes only as much energy as needed and can precisely follow the speed profile required by the application.
How Does an Inverter Work?
The operating principle of a VFD consists of three main stages:
- Rectification: Alternating current (AC) coming from the power grid is converted into direct current (DC) by the rectifier section.
- Filtering: The generated direct current is filtered and stabilized along the DC bus.
- Inversion: Using power electronic switching elements (such as IGBTs), the inverter section converts this direct current back into alternating current at the desired frequency and voltage levels.
Since the rotational speed of the motor is directly proportional to the applied frequency, changing the frequency enables precise control of the motor's RPM.
Key Components of a VFD
Rectifier
Converts incoming AC voltage from the grid into DC voltage.
DC Bus
Filters the rectified energy to create a stable DC voltage and serves as an energy storage unit.
Inverter Stage
Converts DC voltage back into AC voltage at the desired frequency using semiconductor switching elements like IGBTs.
Control Unit
Continuously monitors motor speed, current, voltage, and other operating parameters to ensure the safe and efficient operation of the drive.
Where are Inverters Used?
Today, VFD technology is utilized in numerous industrial applications where electric motors are deployed.
Primary application areas include:
- Pump systems
- Fan and ventilation systems
- Conveyor lines
- Compressors
- HVAC systems
- CNC machines
- Packaging machinery
- Crane and hoisting systems
- Water treatment plants
- Industrial automation systems
Advantages of Using an Inverter
The main reasons why VFDs are widely preferred in industry include:
- Precise control of motor speed
- Significant reduction in energy consumption
- Smooth acceleration and deceleration (soft start/stop)
- Reduction of mechanical wear
- Extended motor lifespan
- Enhanced process control
- Lower maintenance costs
- Easy adaptation to different applications
Thanks to these advantages, inverters contribute significantly both to increasing production efficiency and reducing operational costs.
Difference Between an Inverter and a Soft Starter
Although inverters and soft starters appear to serve similar purposes, their operating principles differ fundamentally.
A soft starter controls only the voltage applied during motor startup and shutdown to reduce inrush current. Once the motor reaches its nominal operating speed, it continues to run directly at grid frequency.
An inverter, on the other hand, continuously controls both frequency and voltage throughout the entire operation of the motor, allowing dynamic speed adjustment. Therefore, VFDs are preferred in applications requiring continuous speed regulation, whereas soft starters are suitable for systems where only a smooth startup is required.
Future Outlook
With the proliferation of energy efficiency initiatives, smart factories, and Industry 4.0 applications, inverter technologies continue to advance rapidly.
Next-generation VFDs can seamlessly integrate with Ethernet-based industrial communication protocols, remote monitoring, predictive maintenance, energy analysis, and cloud-based management systems.
Driven by AI-powered drive algorithms and advanced power electronics, future inverters are expected to deliver higher efficiency, lower energy consumption, and smarter motor control, making VFDs an indispensable component of modern industrial automation.
